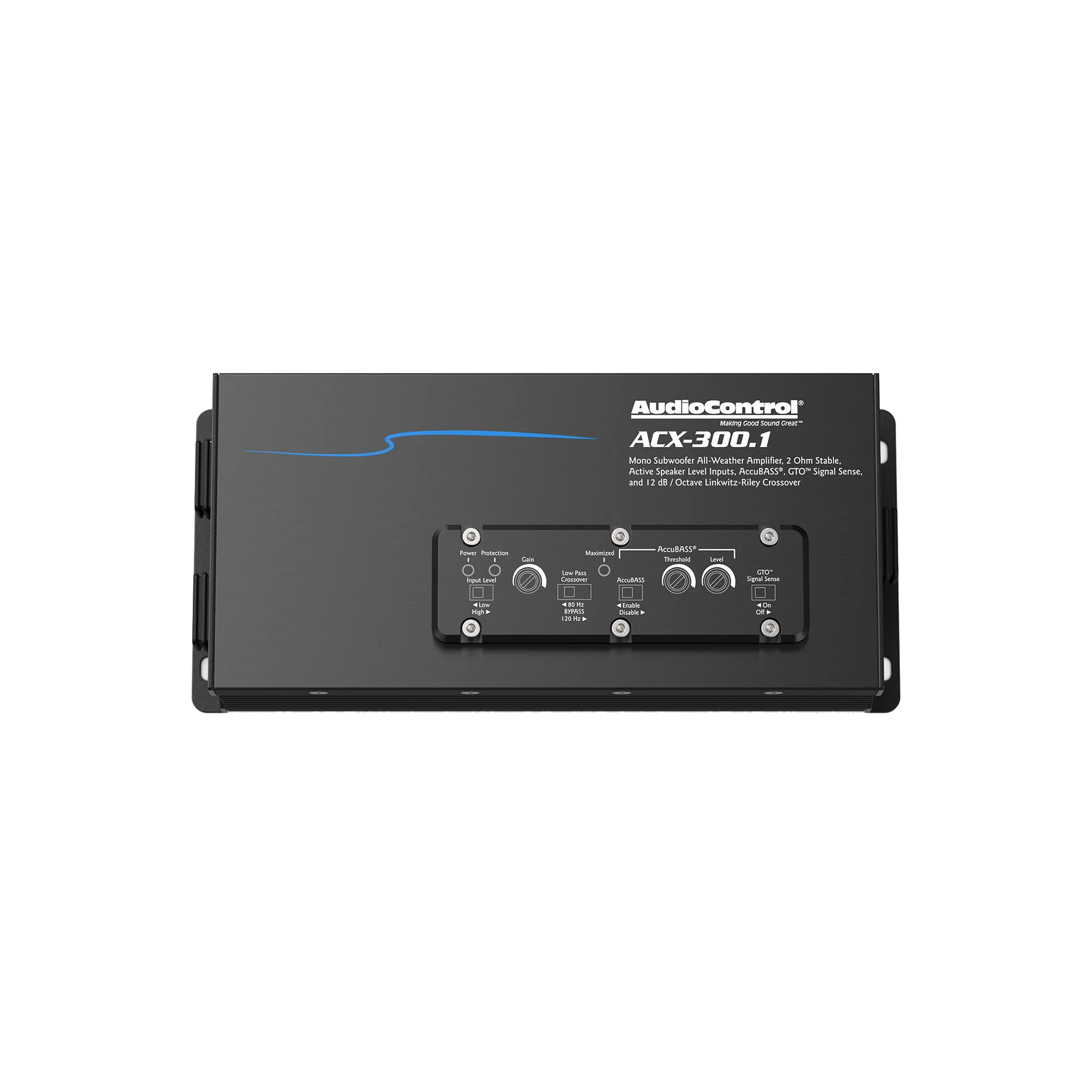

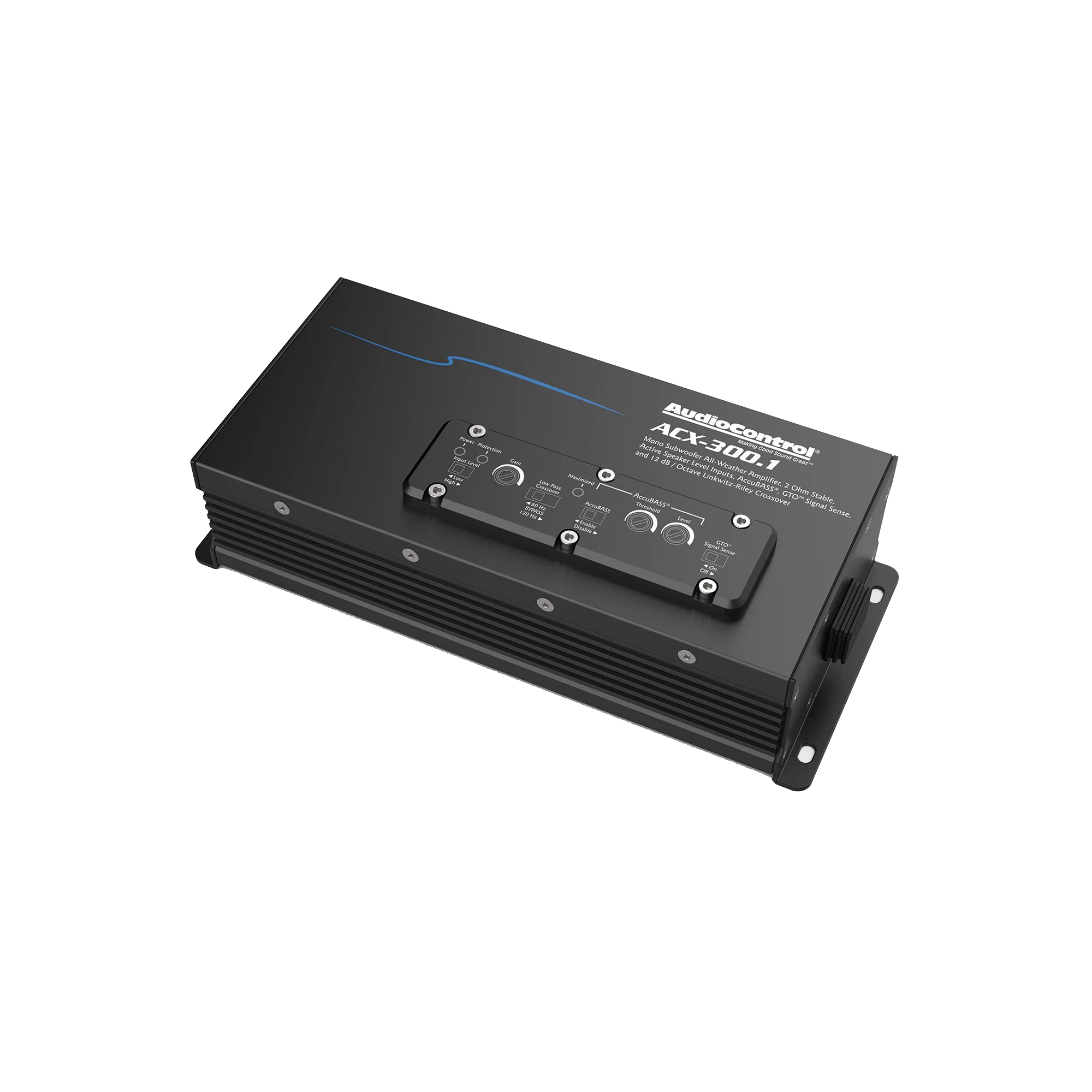

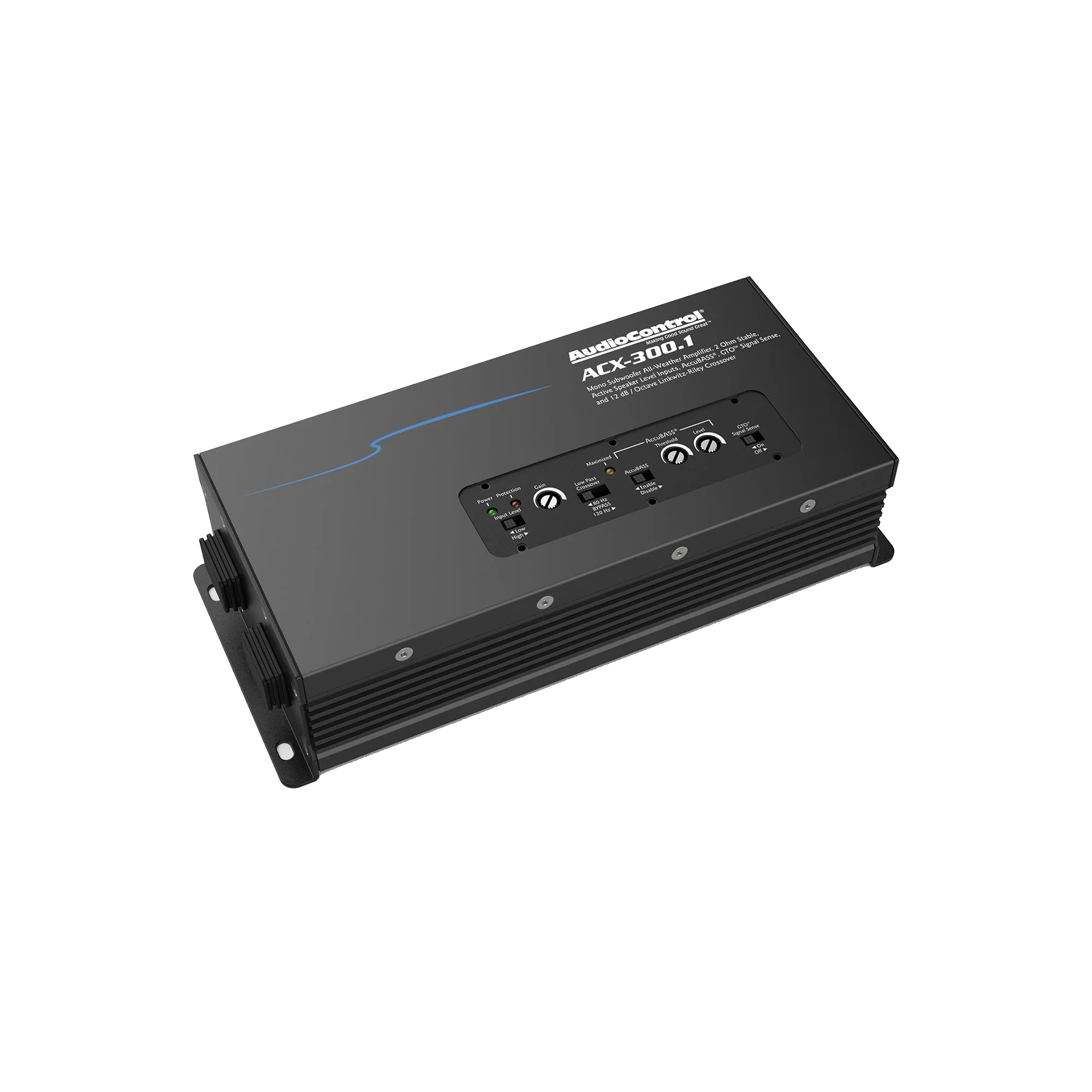

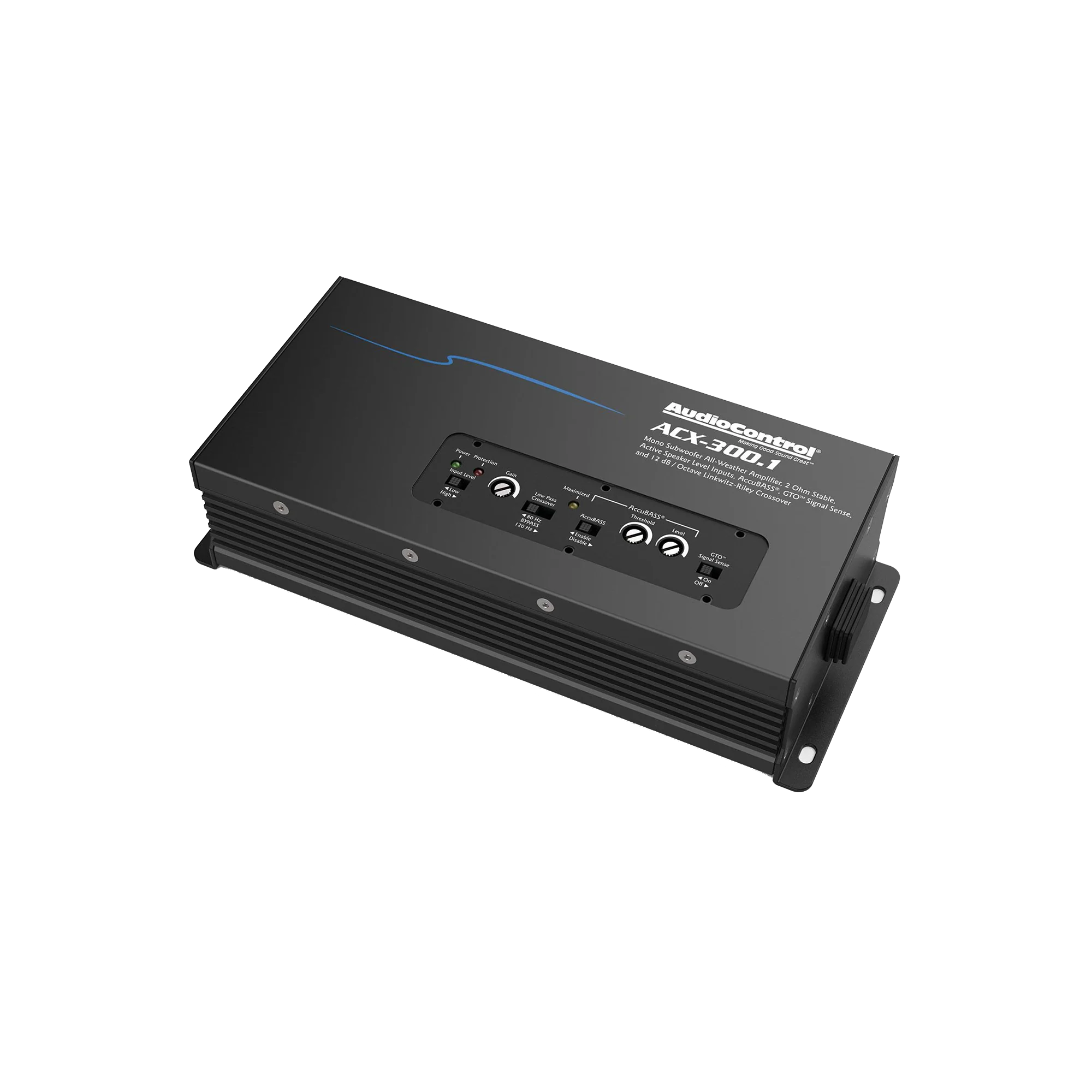

ACX-300.1 All-Weather Monoblock Amplifier, 300W RMS
AudioControl’s ACX-300.1 all-weather monoblock subwoofer amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-300.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.1 all-weather monoblock amplifier the perfect solution for your next adventure.
FEATURES
- 1 x 300 watts @ 2 ohms
- 1 x 175 watts @ 4 ohms
- IPX6 Rated
- AccuBASS® bass management
- GTOTM Signal Sense
- High and low input modes
- Linkwitz-Riley Crossover
- Optional ACR-1 dash remote control
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
SPECIFICATIONS
INPUTS
- Preamp/Speaker Level Inputs: 2
- Input Voltage Low: 500 mV – 6 Vrms
- Input Voltage Range High: 1 Vrms – 12 Vrms
OUTPUTS
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 175 W x 1 RMS
- 2 Ω – 300 W x 1 RMS
PERFORMANCE
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.05%
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- IP Rating: IPX6
