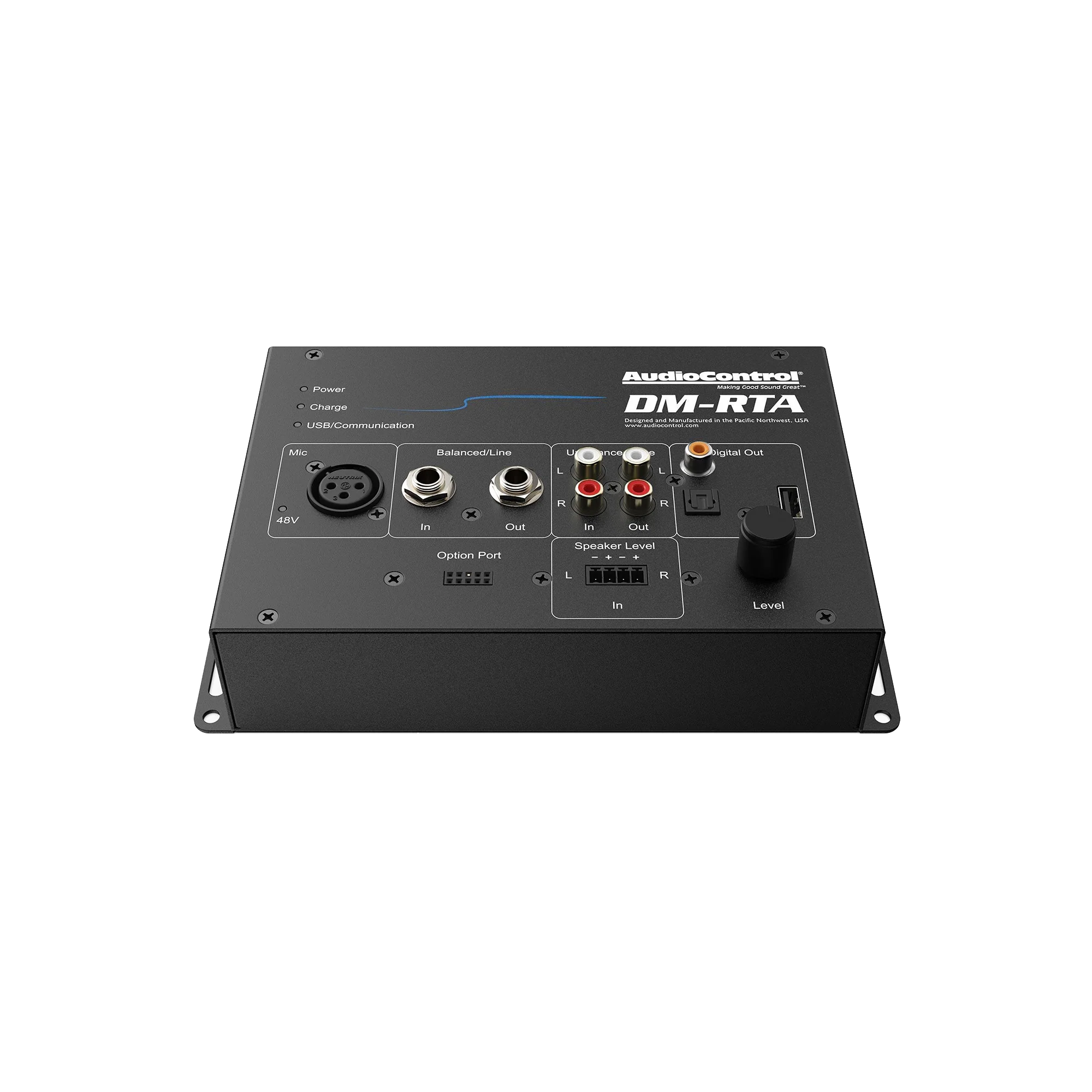

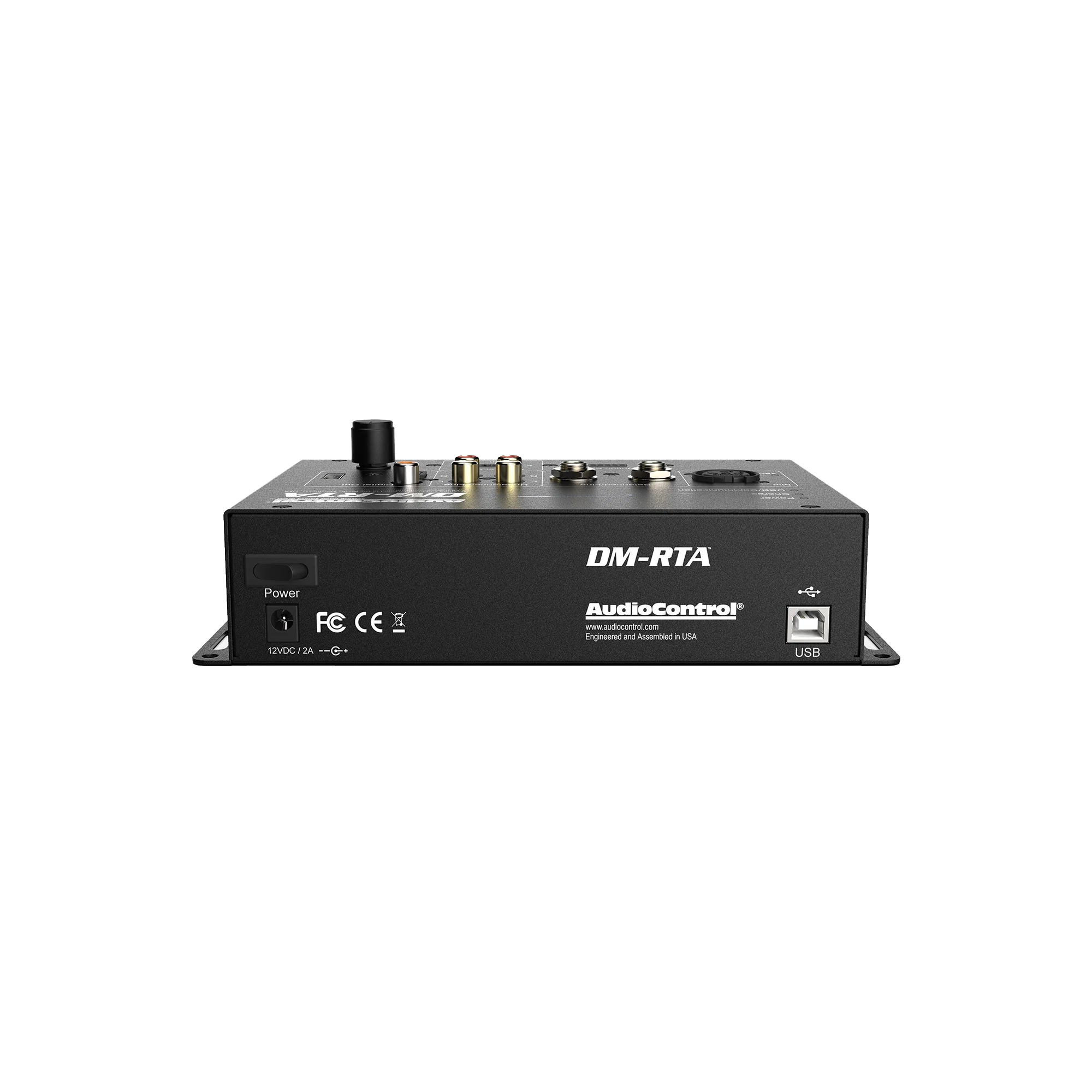

DM-RTA Real Time Analyzer Multi-Test Tool
Building from a legacy of trusted professional audio measurement products, the DM-RTA™ brings the vital tools you rely on to one indispensable interface. Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl’s DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.
The DM-RTA connects to a Mac or PC via USB, or to a phone or tablet via Bluetooth using the AC-BT24 Bluetooth Streamer/Programmer (available separately).
The RTA (real-time analyzer) takes electrical and acoustical measurements. This will let you know how much equalization is needed to smooth out the frequency response of a vehicle.
The sound pressure level (SPL) is used to show how loud the audio system can perform. This is something every customer would love to know and a way to test the before and after performance of a system.
DM-RTA APP

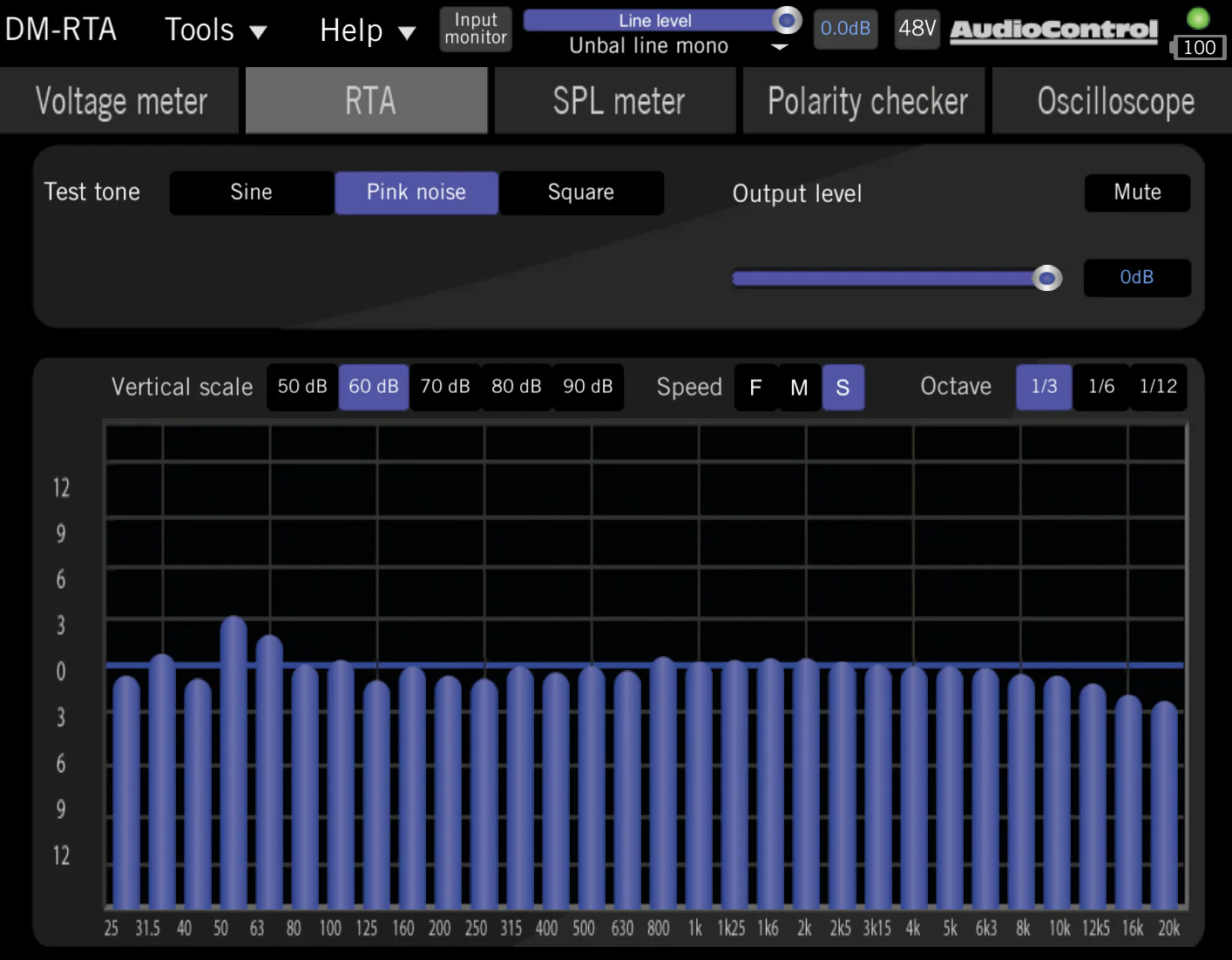

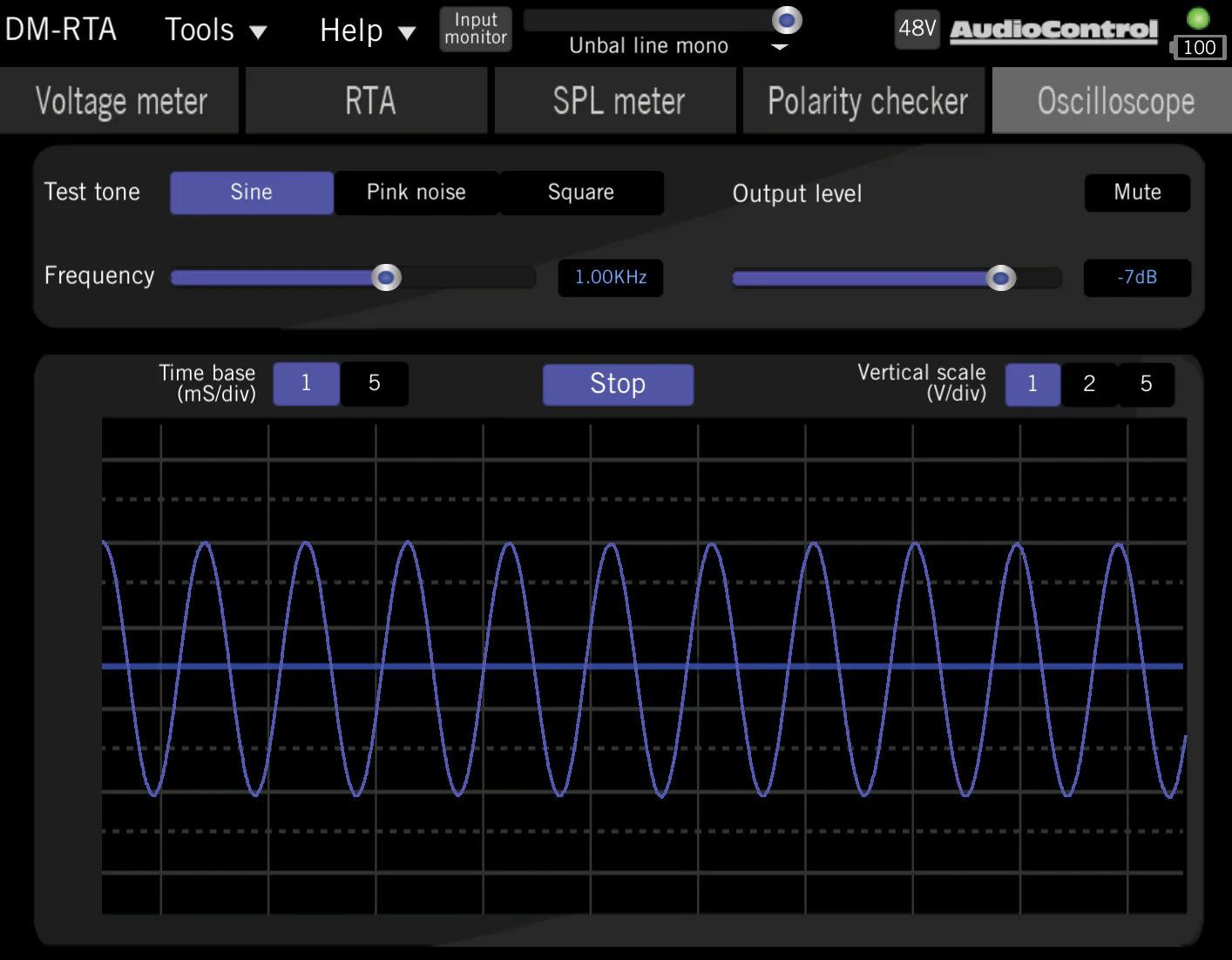

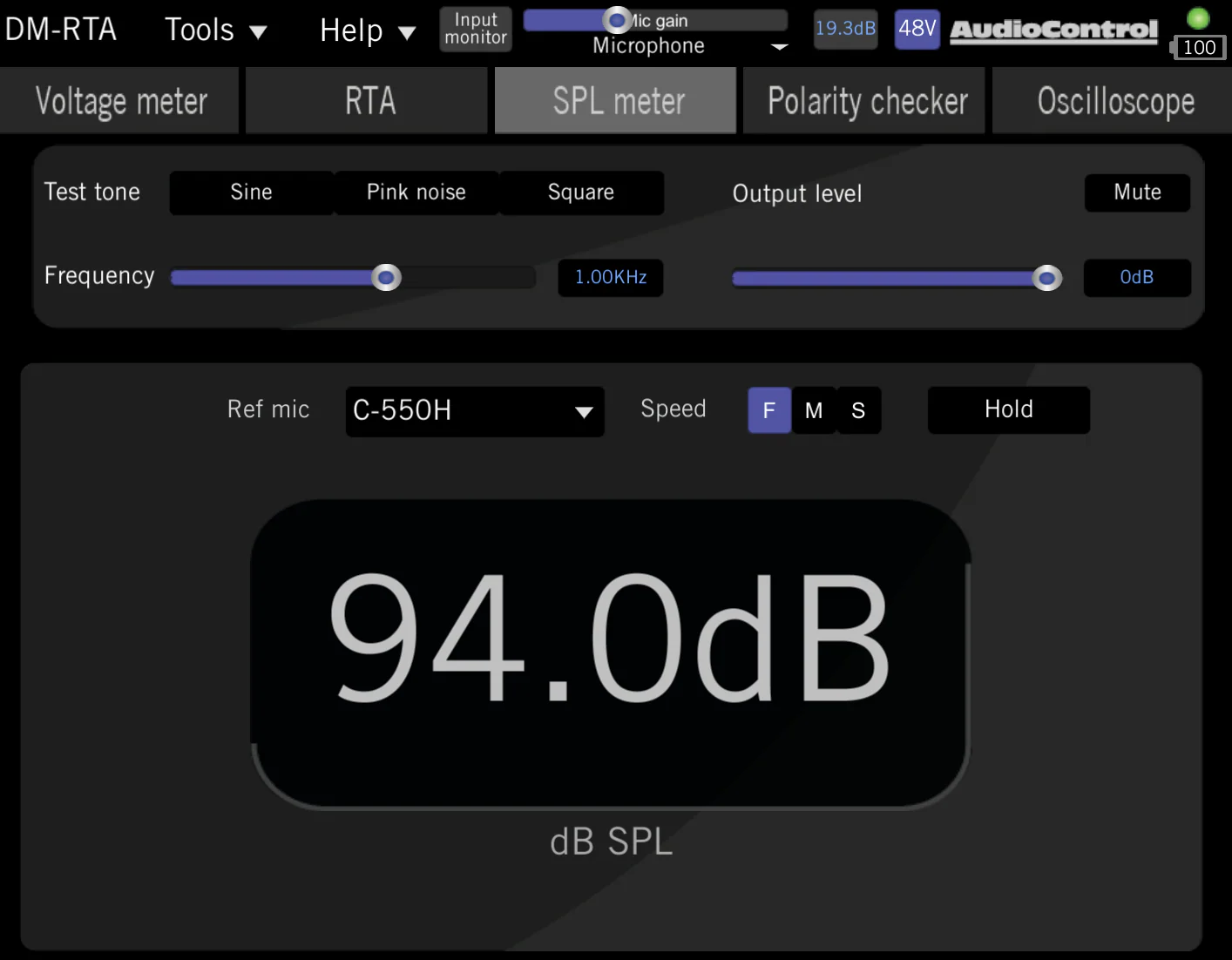

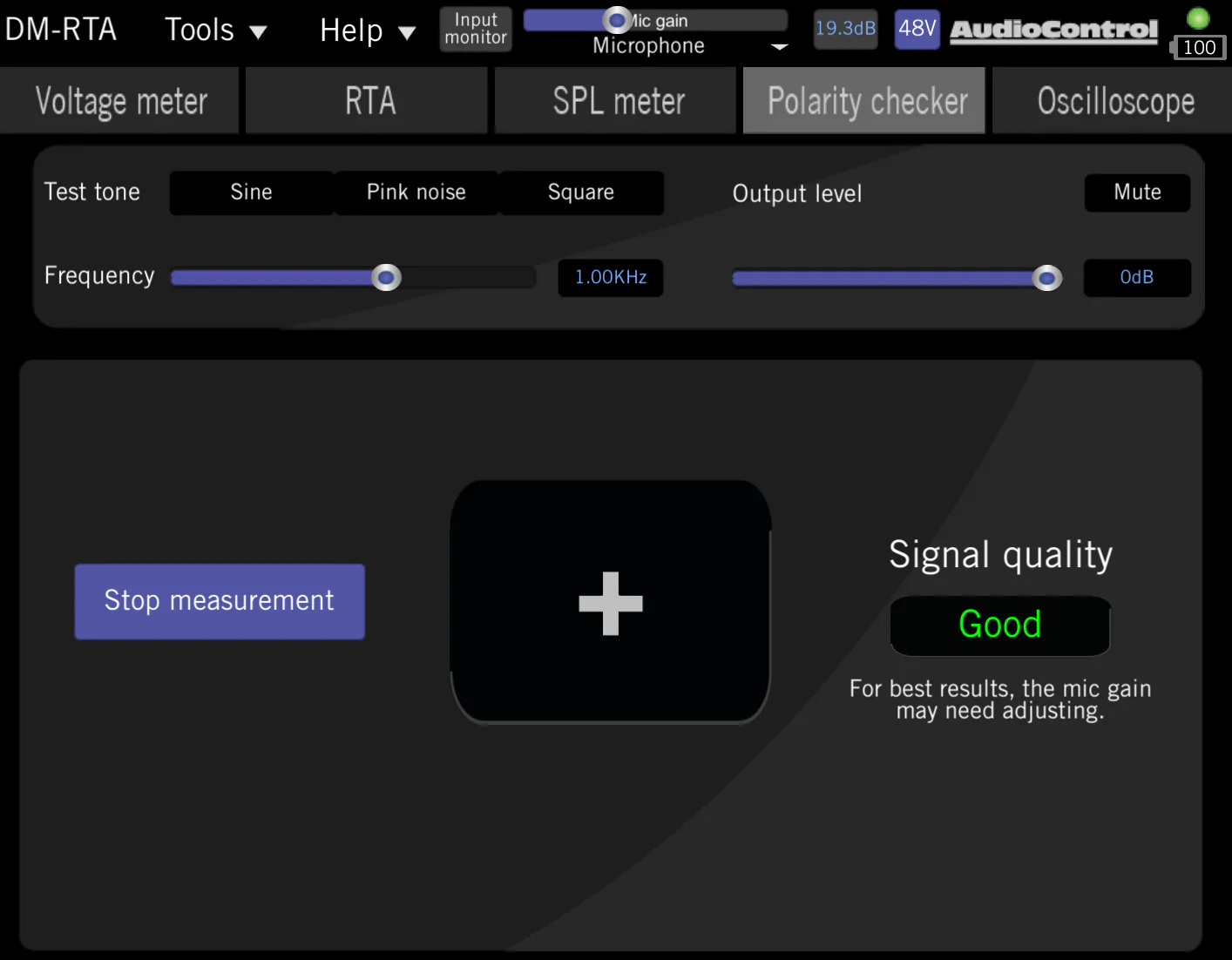

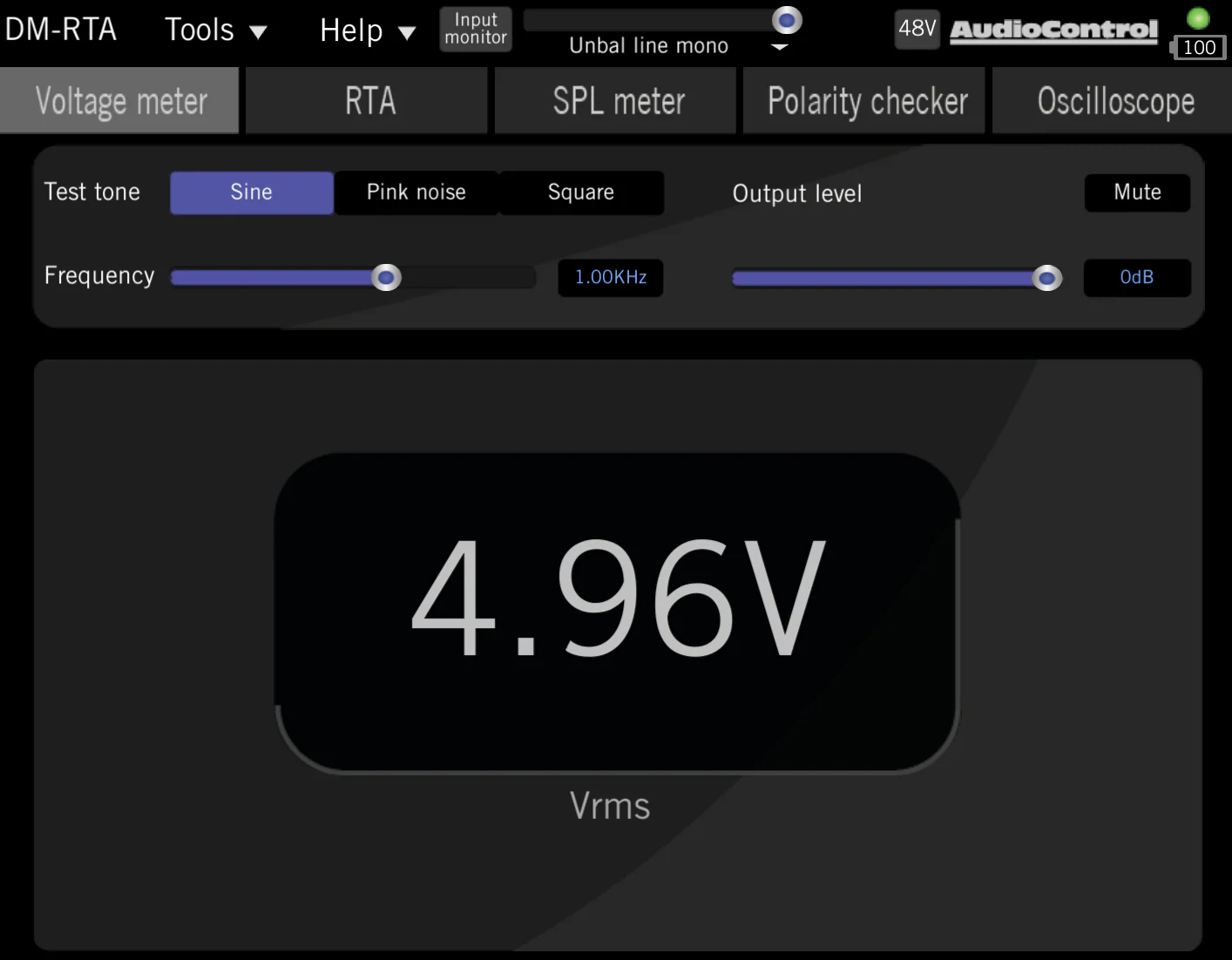

The DM-RTA isn’t just an RTA. Accessible from the DM-RTA app are five modules, including Voltage Meter, RTA (1/3, 1/6, and 1/12 octave), SPL Meter, Polarity Checker and a fully functional Oscilloscope. Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level. Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers. This is the last test tool you’ll ever need.
DM-RTA App via App store for iOS & Android
FEATURES
- Test and Measure Any Signal
- Balanced Line Level Inputs and Outputs
- Unbalanced Line Level Inputs and Outputs
- Speaker Level Inputs (handles up to 400 watts)
- Microphone Input with 48V Phantom Power (microphone sold separately)
- Microphone presets (for CM-20, CM-10 & C550H)
- Digital and USB Outputs
- Connect to PC/Mac, Phone or Tablet
- Option Port for Bluetooth Connectivity
- Battery Powered and Compact for Portability
- DM-RTA app available in downloads for Mac/PC
SPECIFICATIONS
INPUTS
- 1 x Balanced (Input Impedance 3.24kΩ)
- 1 x Unbalanced (Input Impedance 3.24kΩ)
- 1 x Microphone (Input Impedance 10kΩ)
- 1 x Speaker Level (Input Impedance 16.24kΩ)
- Max Low Level Input Voltage: 8 Vrms
- Max High Level Input Voltage: 40 Vrms
OUTPUTS
- 1 x Balanced (Output Impedance: 51Ω)
- 1 x Unbalanced (Output Impedance: 51Ω)
- 1 x Coax Digital (Output Impedance: 75Ω)
- 1 x Toslink
- 1 x USB
- Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak
Original: $949.00
-70%$949.00
$284.70More Images
DM-RTA Real Time Analyzer Multi-Test Tool
Building from a legacy of trusted professional audio measurement products, the DM-RTA™ brings the vital tools you rely on to one indispensable interface. Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl’s DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.
The DM-RTA connects to a Mac or PC via USB, or to a phone or tablet via Bluetooth using the AC-BT24 Bluetooth Streamer/Programmer (available separately).
The RTA (real-time analyzer) takes electrical and acoustical measurements. This will let you know how much equalization is needed to smooth out the frequency response of a vehicle.
The sound pressure level (SPL) is used to show how loud the audio system can perform. This is something every customer would love to know and a way to test the before and after performance of a system.
DM-RTA APP
The DM-RTA isn’t just an RTA. Accessible from the DM-RTA app are five modules, including Voltage Meter, RTA (1/3, 1/6, and 1/12 octave), SPL Meter, Polarity Checker and a fully functional Oscilloscope. Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level. Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers. This is the last test tool you’ll ever need.
DM-RTA App via App store for iOS & Android
FEATURES
- Test and Measure Any Signal
- Balanced Line Level Inputs and Outputs
- Unbalanced Line Level Inputs and Outputs
- Speaker Level Inputs (handles up to 400 watts)
- Microphone Input with 48V Phantom Power (microphone sold separately)
- Microphone presets (for CM-20, CM-10 & C550H)
- Digital and USB Outputs
- Connect to PC/Mac, Phone or Tablet
- Option Port for Bluetooth Connectivity
- Battery Powered and Compact for Portability
- DM-RTA app available in downloads for Mac/PC
SPECIFICATIONS
INPUTS
- 1 x Balanced (Input Impedance 3.24kΩ)
- 1 x Unbalanced (Input Impedance 3.24kΩ)
- 1 x Microphone (Input Impedance 10kΩ)
- 1 x Speaker Level (Input Impedance 16.24kΩ)
- Max Low Level Input Voltage: 8 Vrms
- Max High Level Input Voltage: 40 Vrms
OUTPUTS
- 1 x Balanced (Output Impedance: 51Ω)
- 1 x Unbalanced (Output Impedance: 51Ω)
- 1 x Coax Digital (Output Impedance: 75Ω)
- 1 x Toslink
- 1 x USB
- Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak
