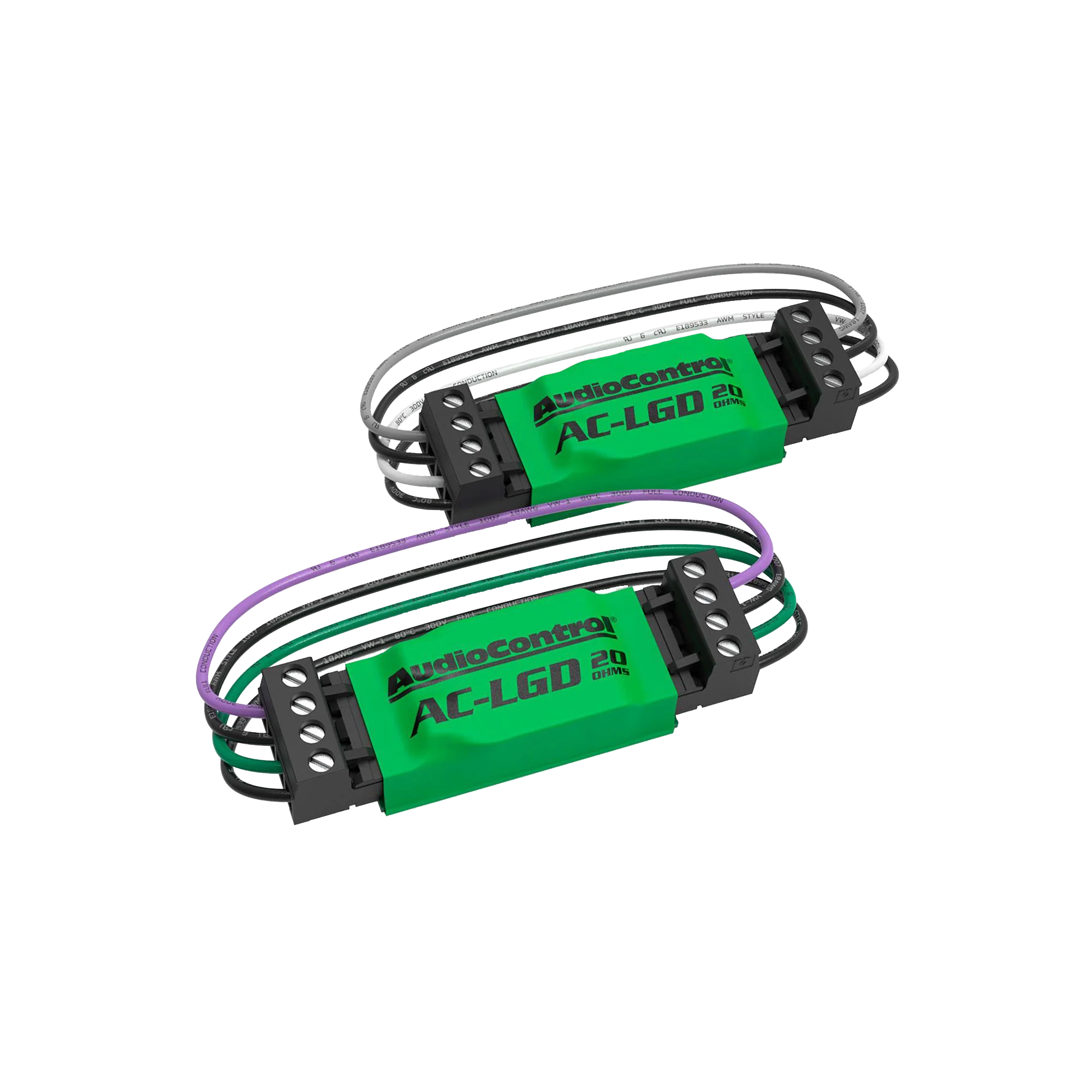

AC-LGD-20 Load Generating Device
IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMS
Today’s factory amplifiers feature built-in protection circuits that can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed to generate load and stabilize signal from the amplified factory system to ensure the best possible audio.
The AC-LGD 20s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with pre-wired connectors. The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections.
GENERAL
- Maximum Input Voltage: 15 Vrms (50 watts)
- Input Impedance: 20 Ohms
WEIGHT & DIMENSIONS
- Dimensions (without wires/connectors): 2.3″L x 1.0″W x .06″H
- Dimensions (with wires/connectors): 9.75″L x 1.0″D x .06″H
- Weight (single LGD): 1.4oz (39g)
IN THE BOX: One pair of prewired AC-LGD 20s
California Proposition 65
- To our California customers: Please view your Proposition 65 warning here.
