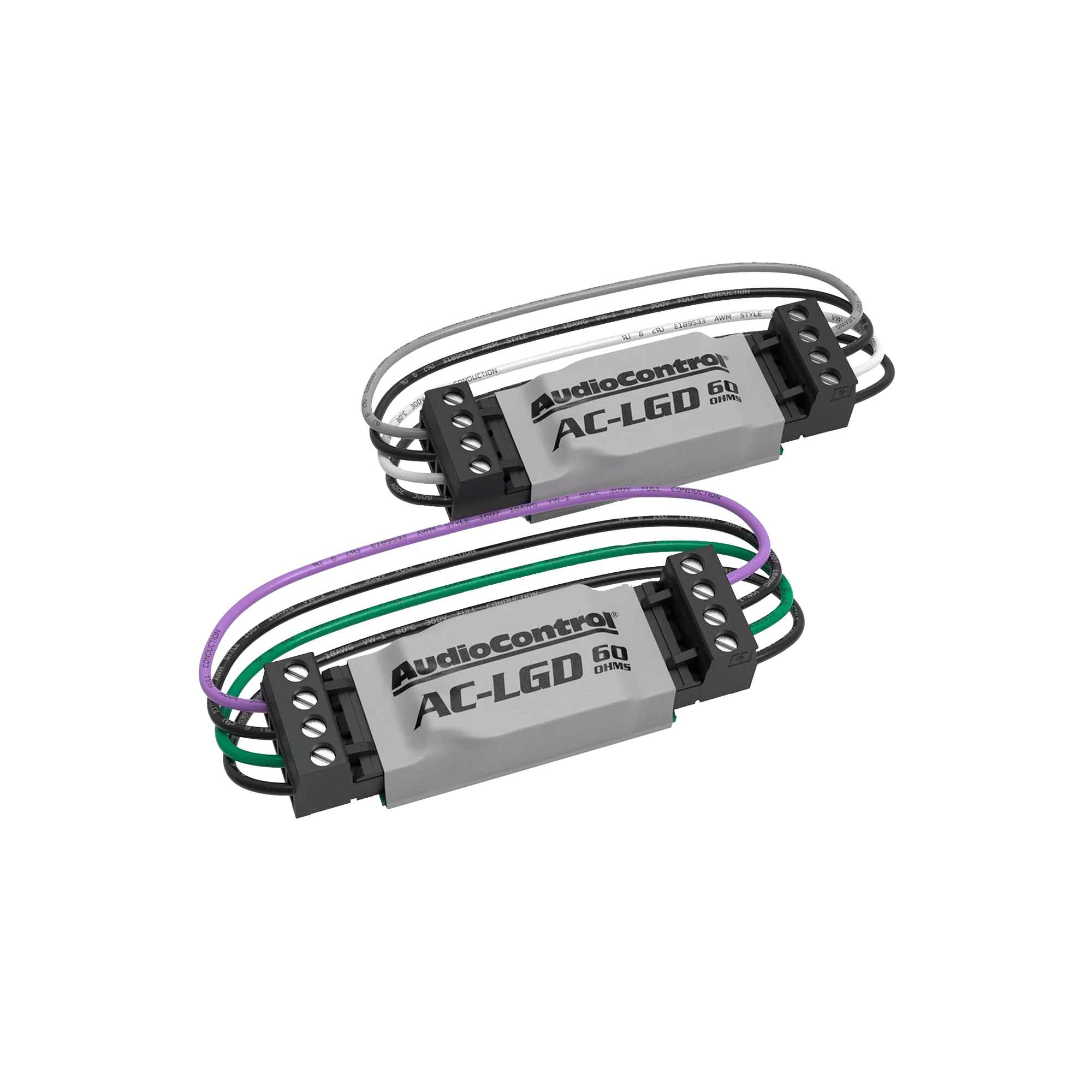

AC-LGD-60 Load Generating Device
IDEAL FOR OEM PREMIUM AMPLIFIED DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMS
Today’s factory amplifiers feature built-in protection circuits which can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 60 has been designed to generate load and stabilize signals from the amplified factory system to ensure the best possible audio.
The AC-LGD 60s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with pre-wired connectors. The AC-LGD 60 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 60 pair comes pre-wired with EIA standard wire colors for front and rear connections.
GENERAL
- Maximum Input Voltage: 25 Vrms (150 watts)
- Input Impedance: 60 Ohms
WEIGHT & DIMENSIONS
- Dimensions (without wires/connectors): 2.3″L x 1.0″W x .06″H
- Dimensions (with wires/connectors): 9.75″L x 1.0″D x .06″H
- Weight (single LGD): 1.4oz (39g)
IN THE BOX: One pair of pre-wired AC-LGD 60s
California Proposition 65
- To our California customers: Please view your Proposition 65 warning here.
